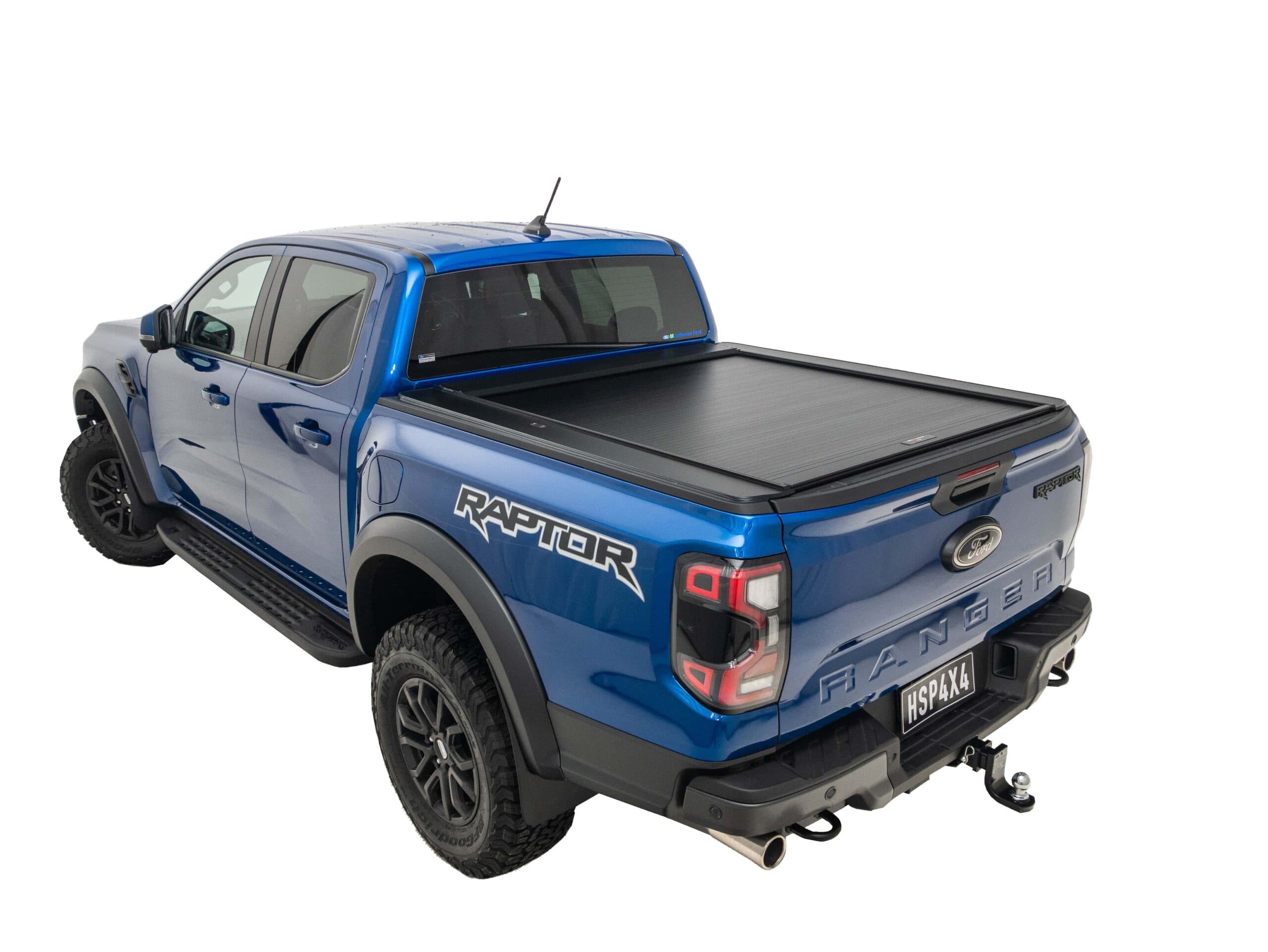

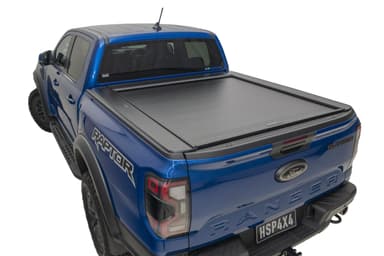

Electric Roller Cover
Ford Next Gen Ranger & Raptor

No Ford Ranger roller covers are 100% waterproof or dustproof. However, this system is water-resistant, with a multi-point drainage system capable of handling 60 litres per minute. You can also purchase kits elsewhere that further ensure your tub is dust-resistant, which are compatible with our cover

The space underneath the roll top canister varies from vehicle to vehicle, so the best way is to measure the total height of your specific tub and then subtract 25mm off the top. The remaining height will be the total usable height underneath the roll top when closed.

The net weight of the HSP roll-top is between 55 and 65 kg, depending on the vehicle model of the cover.

The Roll R Cover is engineered to support weight directly on the side rails, using either the Load Bar with a dynamic capacity of 40–80 kg or the Load Rack with a dynamic capacity of up to 150 kg.

Although the curtain is strong and features an interlocking extrusion design, we have not done weight testing on the curtain itself, as it is a moving part and should not have weight stored on it.

The canister size varies by vehicle platform, and for this Ford Ranger Next Gen and Raptor electric roller shutter, the compact low-profile design measures 215mm (depth) x 260mm (front to rear).

This streamlined canister profile is engineered to maximise tub space while maintaining full 100% curtain retraction into the housing.

No, when the Roll R Cover is in operation, it draws an average of 5-8 amps. Once the Roll R Cover is not in operation and the light is off, there will be no amp draw.

When in operation, the roller cover draws power based on the motor and LED light strip, with the controller supporting up to 20A at 12V, depending on the load. When the controller is not in operation, and the LED touch display is not illuminated, the current draw is approximately 40 mA at 12V, or 480 mW.

The LED light will drain the battery faster if left on for extended periods. By default, the LED light turns off after 10 minutes, with a maximum timeout of 15 minutes. The LED strip has built-in protection features that limit current draw to 1.25A and provide short-circuit protection at 2A.

The Motor Drive’s default run time is 15 seconds and includes basic object/end-stop detection based on current draw. This limits power consumption, but if the default time or current draw settings are changed, it will increase overall power draw.

An electric system changes how you access and secure your tub. Instead of manual handling, you get controlled open, close and pause from your key, touchpad or app, with locking tied to the vehicle. For daily use, that consistency and control is where the value comes through.

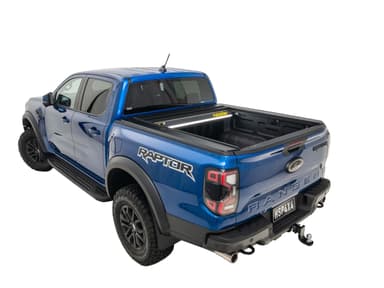

There is a canister at the front of the tub, which takes up some space. HSP keeps this compact, with full retraction into the canister, so the remaining tub space stays usable for gear, tools, or setups.

The system is water-resistant, but not fully waterproof. It uses sealed side rails and a multi-point drainage system designed to handle high water flow, helping keep the tub area protected during heavy rain.

The system relies on vehicle power, so electric operation will not function if the battery is flat. In this situation, access depends on restoring power to the vehicle. This protects the system and keeps operation aligned with the vehicle’s electrical controls.

Basic upkeep is simple but important to ensure long-term performance. Regularly clean the system using a mild detergent and water, paying close attention to the side rails, seals and internal gutter channels. This is where dirt, sand, and grime can build up over time. Also remove debris from the internal spiral mechanism using a soft cloth or rag.

It’s recommended to lift and inspect the cover components, removing any accumulated dirt from seals and drainage paths to maintain proper water flow. A cleaning kit is included with the system for this purpose and can be reused for ongoing maintenance.

For a step-by-step guide on correct cleaning and care procedures, refer to our detailed maintenance instructions.

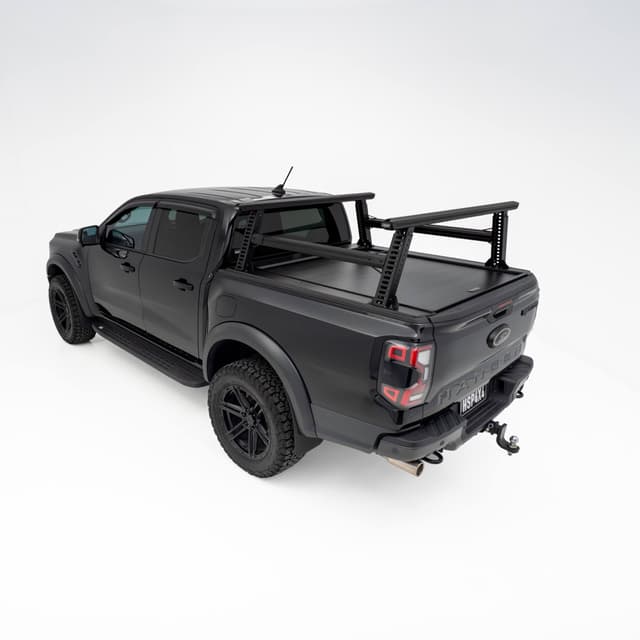

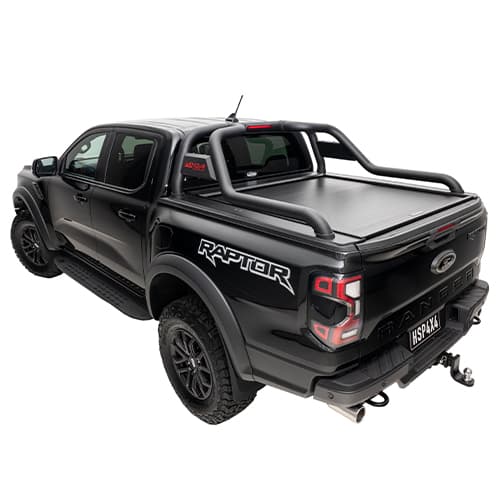

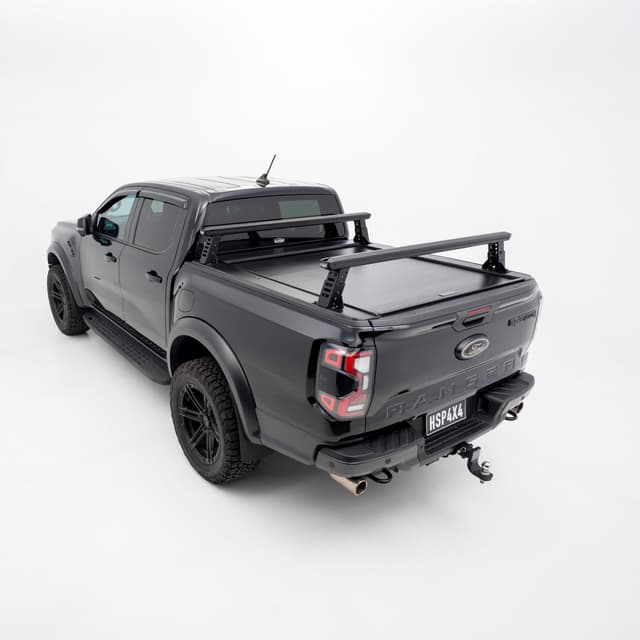

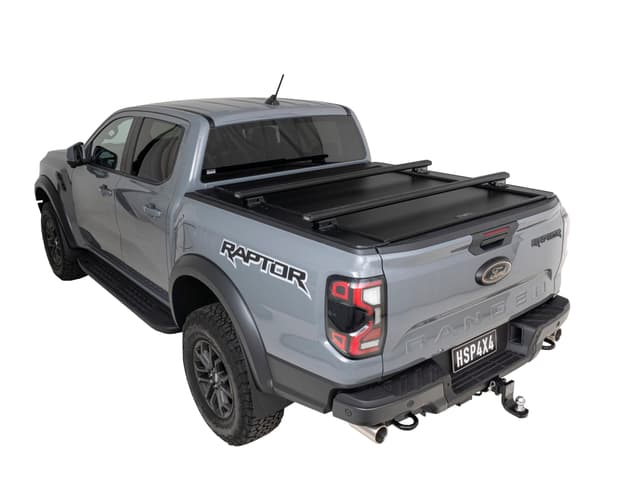

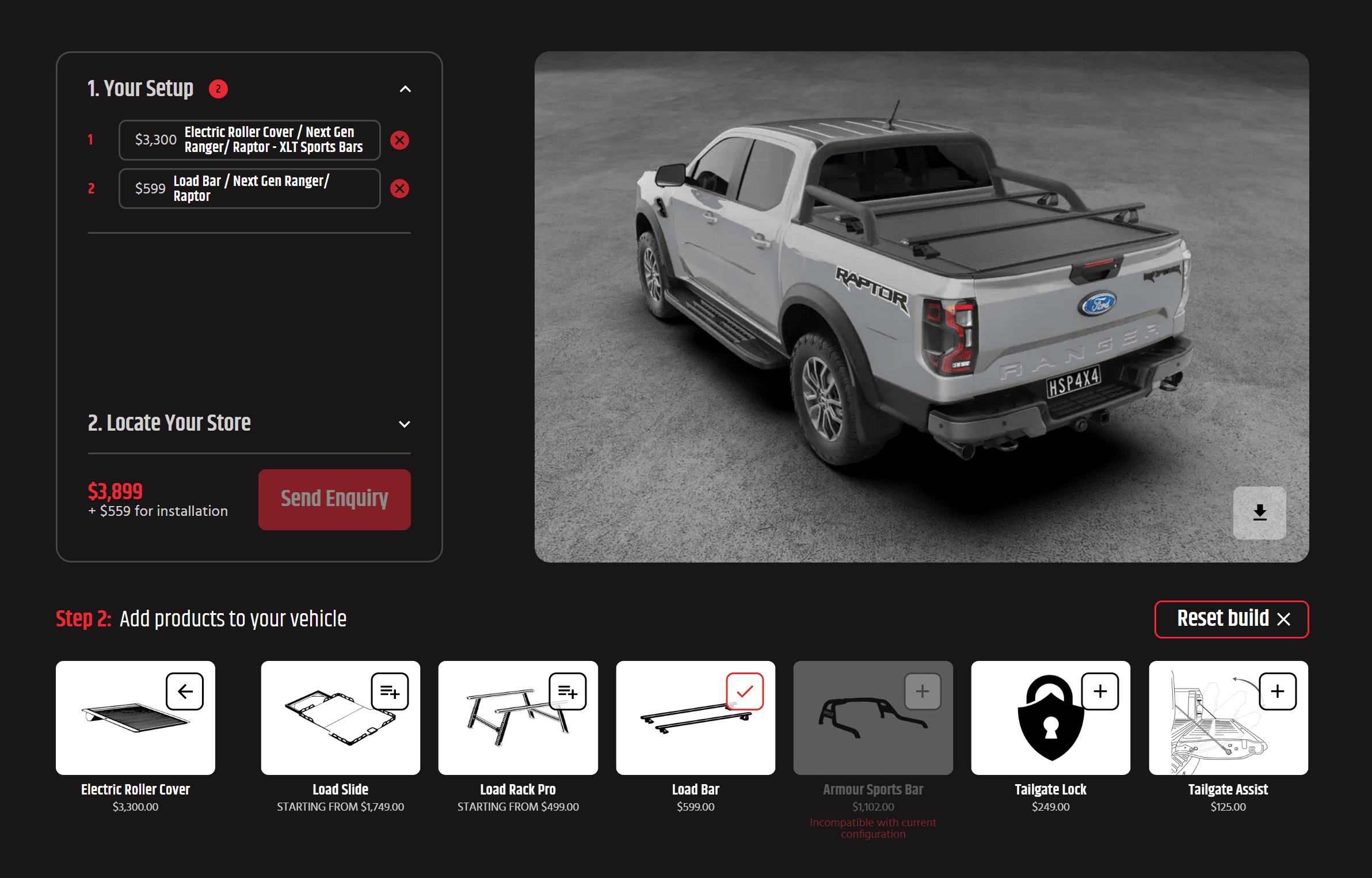

Yes. It is compatible with genuine Ford Sports Bars, the HSP Armour Bar Sports Bar and works with HSP Ford Ranger Tub Racks, Ladder Racks, and Load Bars, allowing you to carry additional gear without limiting access to the tub.

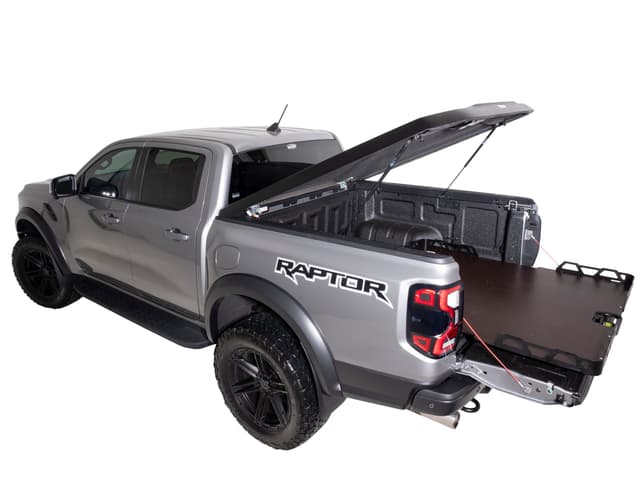

It can also be used alongside setups like a Ford Ranger Tray Slider, depending on the vehicle configuration. This makes the Ford Ranger electric roller shutter suitable for work setups, touring and everyday use.
